Futaba 6K 2.4GHz S FHSS/T-FHSS Radio System (Airplane) w/R3006SB Receiver

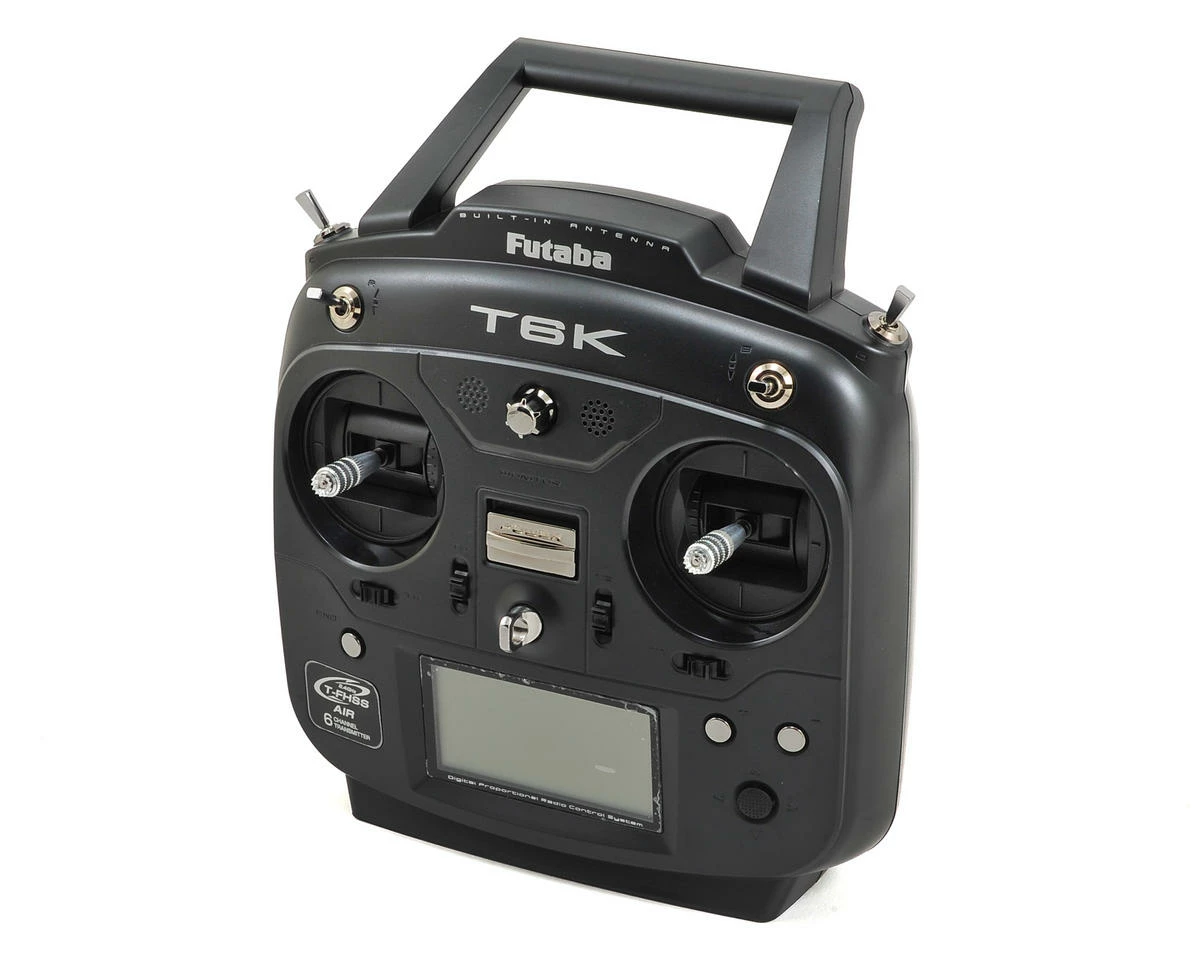

The Futaba 6K 2.4GHz S-FHSS/T-FHSS Radio System is one of the most feature packed transmitters in its price range. Telemetry sensors to monitor critical flight data, S.Bus and S.Bus2 servo compatibility, with setting functions that can be programmed directly from the transmitter. Ergonomic controls are within easy reach, and the menu navigation is simple. When you consider other features like 30 model memory, a backlit 128×64 DOT LCD screen and updateable software, it’s easy to see why the 6K is a lot of radio for the money.

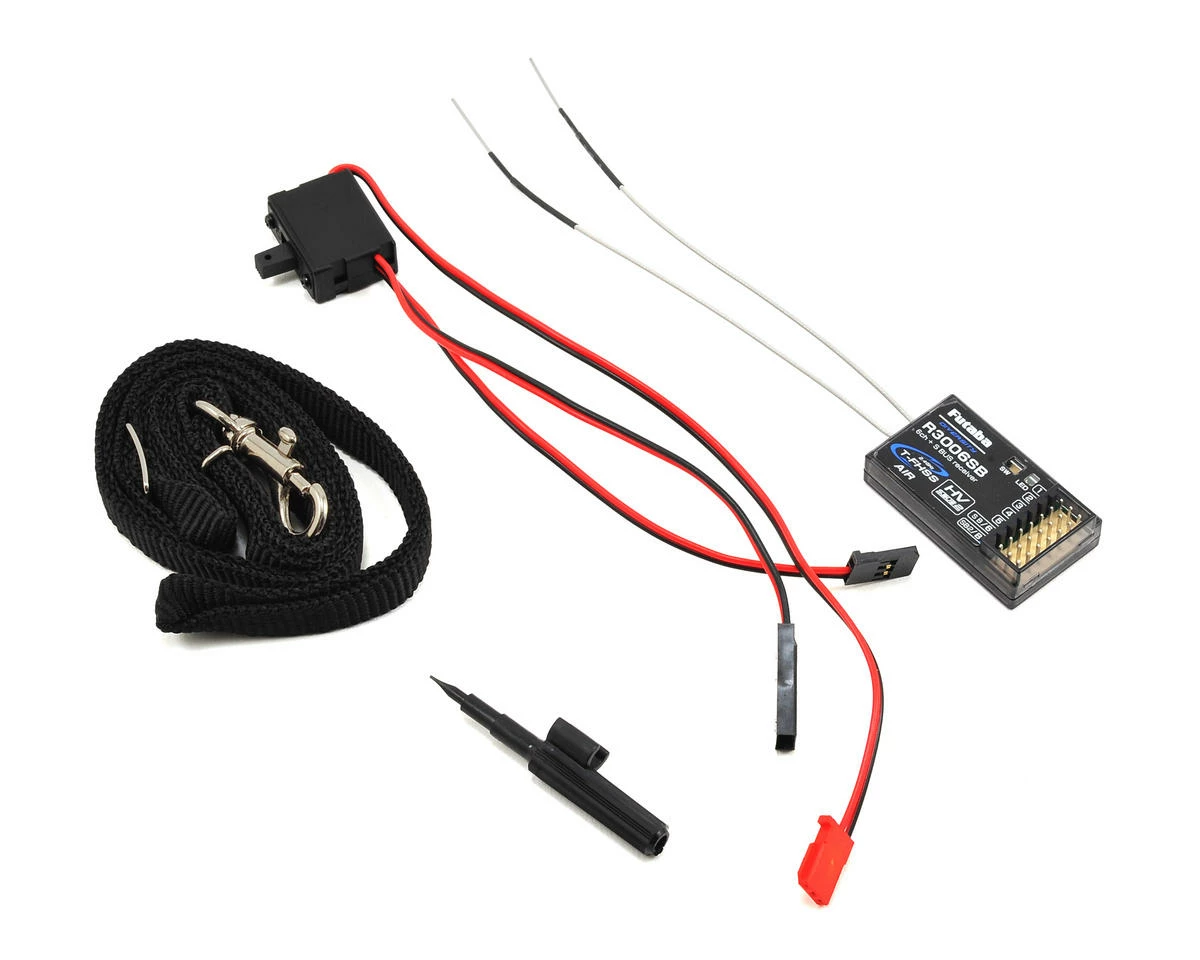

The R3006SB receiver can use S.Bus as the main link/communication to the servos or a combination of S.Bus and the conventional outputs together. It features 6 standard PWM outputs in addition to S.Bus and S.Bus-2 outputs.Features bi-directional communication with a T-FHSS Air Futaba transmitter using the S.BUS2 port. Using the S.BUS2 port with an impressive array of telemetry sensors may be utilized.

System Features:

• S-FHSS/T-FHSS selectable
• Telemetry system (T-FHSS) with data speech function for monitoring receiver battery voltage, external voltage, temperature, RPM, altitude and variometer
• Built-in antenna
• S.Bus/S.Bus2 servo setting functions programmable through the transmitter
• Preset vibration alarms
• 30 model memory
• 8-character model/user naming
• Programmable mixes for airplanes, helicopters, gliders and multi-rotors
• Digital trims with variable step settings
• Adjustable stick length and tension
• Changeable switch/VR position and AUX channel function
• Throttle position warning
• Backlit 128×64 DOT LCD screen with adjustable display contrast
• Software updateable through the CIU-2
• Screen Lock
• Earphone/S.Bus/Trainer jacks
• Assignable switches (three 3-position, one 2-position)
• Range Check
• Program navigation bay with jog dial, +/- pads and end pad
• Data reset
• Model copy
• Selectable model type
• Fail Safe
• End Points
• Trim/Trim Resets/Trim Steps
• Sub Trim
• Servo Reversing
• Parameter functions
• Servo monitor/Test
• Wireless model data transfer
• Timer-System and Model (Up/Down)
• Trainer system

Airplane Functions:

• Wing Type (5-wing, 2-tail)
• Throttle Cut
• Dual Rate/Expo
• Throttle Curve
• Idle down
• Gyro
• Aileron differential
• V-Tail
• Camber
• Air Brake
• Elevator-to-Flap mixing
• Flap-to-Elevator mixing
• Elevon mixing

Specifications:

• Transmitter:
• Type: 2-stick, 6-channel, T-FHSS/S-FHSS selectable
• Power Supply: Optional 6V Nimh’s or 6.6V Lithium (LiFe) batteries
• R3006SB Receiver:
• Model: R3006SB 2.4GHz T-FHSS S.Bus
• Type: Full-range flight receiver
• Modes: S-FHSS or T-FHSS
• Features: bi-directional communication with a T-FHSS transmitter to utilize an array of telemetry sensors, S.Bus and S.Bus2 ports, along with 6 standard PWM outputs
• Voltage Input: 4.8V-7.4V
• Dimensions: 1.7 x 0.98 x 0.35 in (43 x 25 x 8.8 mm)
• Weight: 0.3 oz (8.5 g)
• Stock #: FUTL7683

This product was added to our catalog on September 9, 2015
