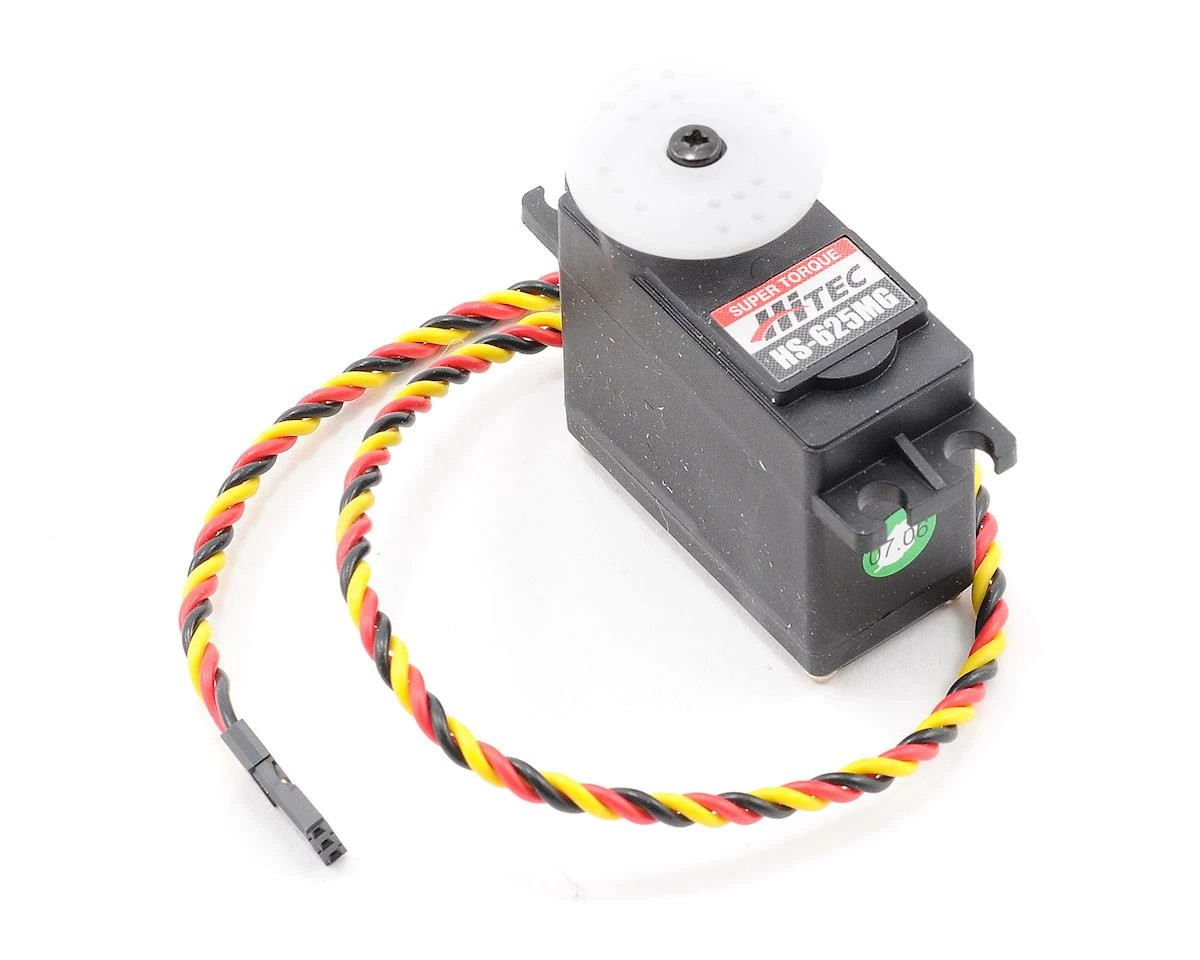

Hitec HS-625MG Metal Gear Super Torque Servo

The powerful high speed HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes and 10th scale sport vehicles.

Key Features:

• M/P and Metal Gear Train Technology

Specifications:

• Size Category: Standard
• Type: Analog
• Application: Larger Aircraft and 1/10 Sport Vehicles
• Torque: 76.4 oz-in (5.5kg-cm) @ 4.8V; 94.4 oz-in (6.8kg-cm) @ 6V
• Speed: 0.18 sec/60 deg @ 4.8V; 0.15 sec/60 deg @ 6V, at no load
• Length: 1.60 in (40.6mm)
• Width: 0.78 in (19.8mm)
• Height: 1.49 in (37.8mm)
• Weight: 1.94 oz (55.2g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: 3 Pole
• Connector Type: Universal
• Gear Type: Metal
• Current Draw Idle: 8.8mA @ 4.8V; 9.1mA @ 6.0V
• Voltage: 4.8V to 6.0V
• Deadband: 8µs

This product was added to our catalog on December 20, 2005
