Hobbywing XRotor Micro 4in1 ESC & F4 G3 Flight Controller Combo
Original price was: $79.99.$47.99Current price is: $47.99.
- Quality You Can Trust
- Safeguard Your Shopping Experience
- Satisfaction Guaranteed
- Shop with Peace of Mind

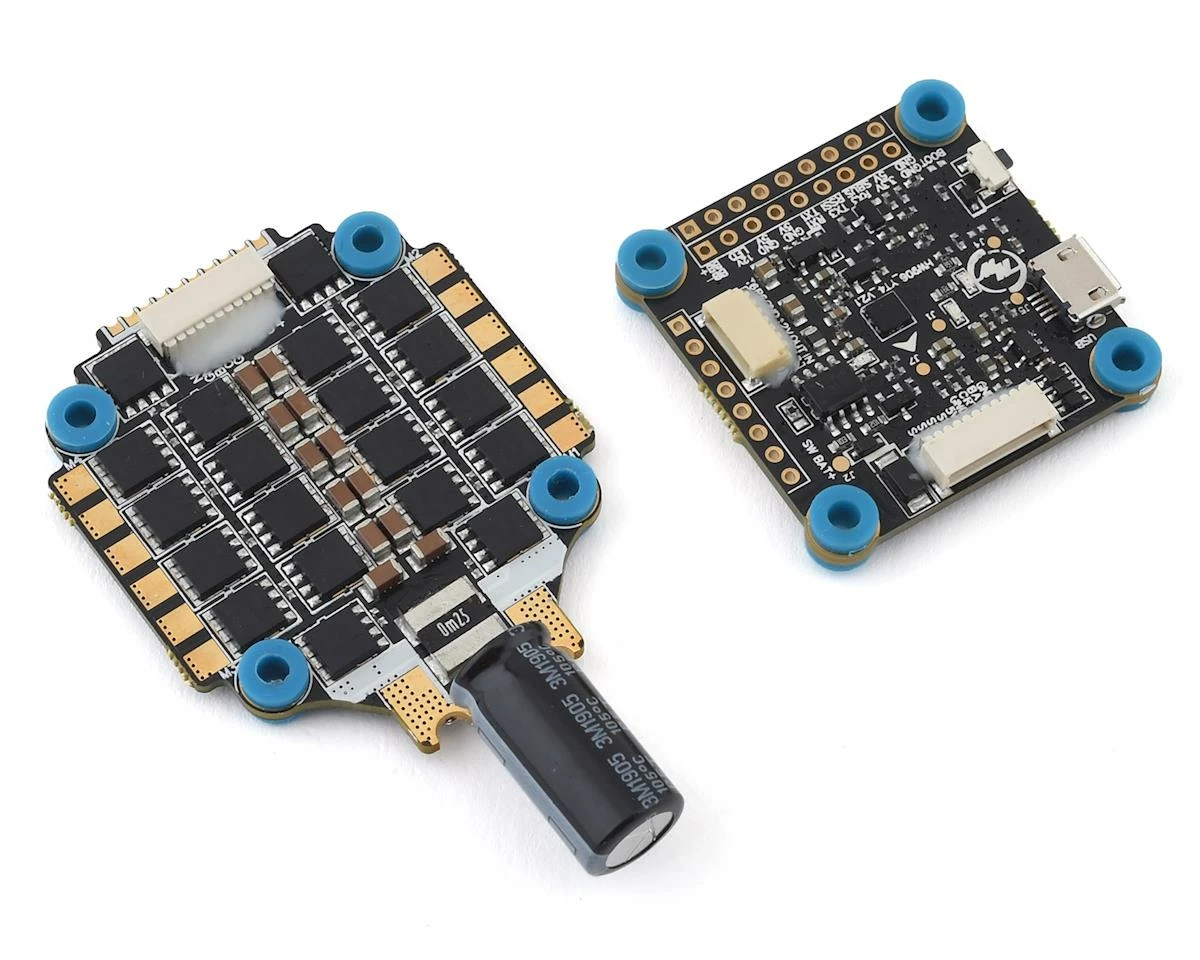

The Hobbywing XRotor Micro 4-in-1 ESC and F4 G3 Flight Controller Combo is composed of HWA31003001 & HWA30902063.
Flight Controller Features:
- STM32 F405 MCU.
- Board load 12V BEC, the output current can reach 2A. It can supply power for graphic transmission, 12V LED lamp and other equipment
- The SPI ICM-20602 which integrates accelerometer and gyro (with the running frequency can be set to 32KHz) is adopted
- Onboard OSD microchip which supports the DMA mode allows users to adjust its parameters via the Betaflight software (Note: the OSD is controlled by the F4 MCU)
- The FC which supports Betaflight firmware & allows parameter adjustment via Betaflight software is more applicable to FPV race
- F-card which can record and save more flight/black box data allows users to adjust thesetup of their aircraft easily
- Compatible with various receivers like SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS, PPM and etc
- LED strip signal output port allows users to adjust the color & flash mode of the LED strip via the FC
- Volt/Amp monitoring port allows users to check the battery voltage (BAT port) and current (CRT port , extra current meter is needed)
- Buzzer output port allows users to connect external buzzer(s) to the FC for warning or informing the flight status of the aircraft
- Micro USB port allows users to connect the FC to a PC to flash firmware and adjust parameters
- Switch module of board load graphic transmission(VTX) can use remote contorl to control switch of graphic transmission
ESC Features:
- BLHeli_32 DShot 1200 ESC
- Dual 5V BEC Outputs
- Voltmeter Module
- Rubber Isolated Mounts
Flight Controller Specifications:
Specifications:
Continuous Current: 60A
Input Voltage: 3s-6s LiPo
BEC Output: 5V & 0.6A
Size (LxWxH): 52x42x6.6mm
Supported Firmware: BLHeli_S32
Weight: 15g
4-in-1 ESC Specifications:
Continuous Current: 60A
Input Voltage: 3s-6s LiPo
BEC Output: 5V & 0.6A
Size (LxWxH): 52x42x6.6mm
Supported Firmware: BLHeli_S32
Weight: 15g
