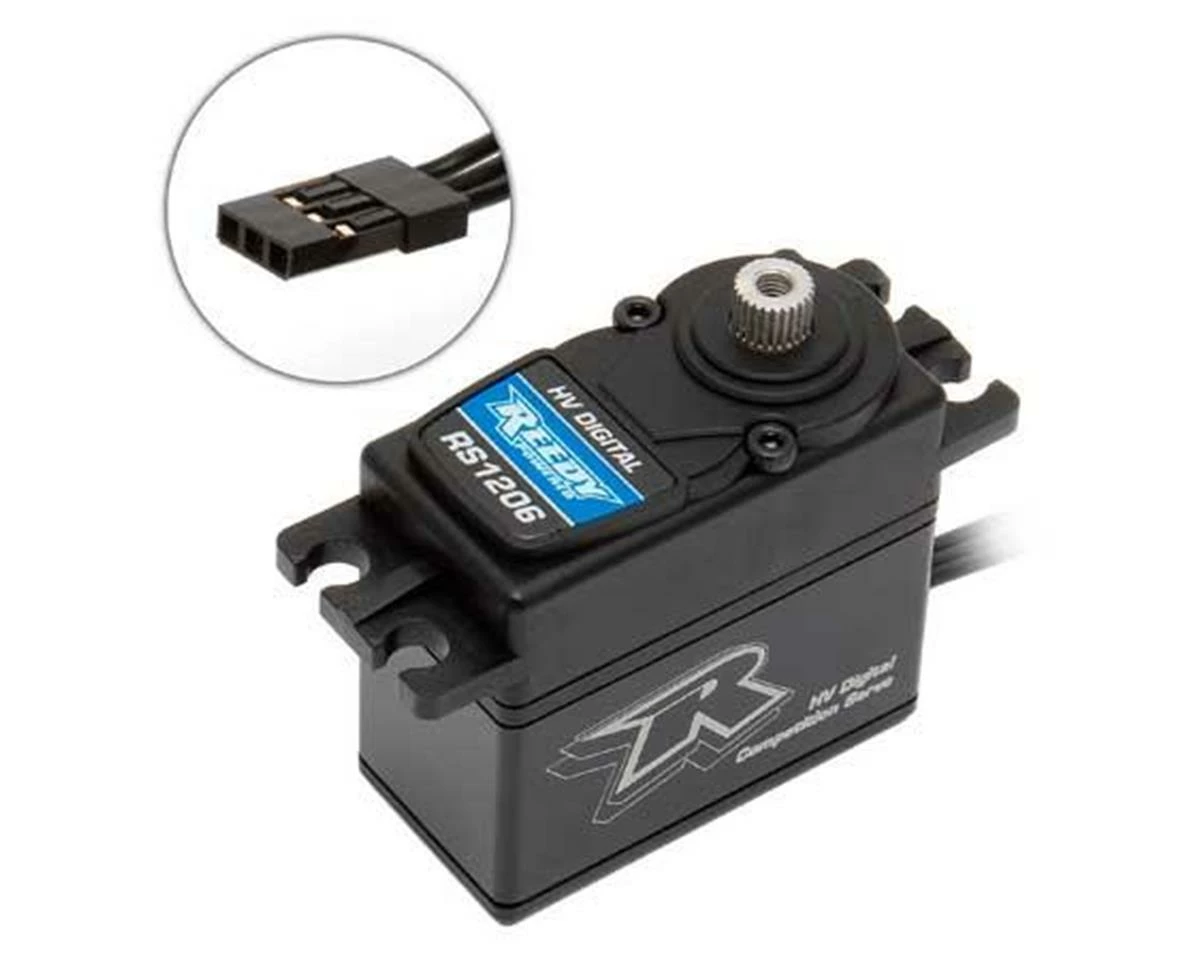

Reedy RS1206 Digital Hi-Speed Competition Servo (High Voltage)

This is the Reedy RS1206 Digital Hi-Speed Competition High Voltage Servo. Reedy’s HV Digital Competition Servos are race-proven and feature numerous enhancements including precision metal gears for added strength and smooth operation, and an advanced microprocessor that improves vehicle control and on-track performance. Its state-of-the-art aluminum mid case lowers operating temperatures for fade-free operation.

High voltage compatibility means that LiPo RX batteries or increased ESC BEC output voltage can be used without fear of damaging sensitive internal components. Powerful motors, reliable electronics, and high voltage versatility, and a choice of hi-torque (ASC27101) and hi-speed models make Reedy’s HV Digital Competition Servos the logical choice for a variety of racing classes and skill levels.

Features:

• Water and dust resistant
• Aluminum mid-case
• Powerful coreless motor
• Ultra-precise metal gears
• Dual ball bearings
• High-voltage compatible
• 25 tooth spline

Specifications:
Part: 27100
Input (V): 6.0 – 7.4
Speed (sec/60°), 6.0V: 0.08
Speed (sec/60°), 7.4V: 0.06
Torque (kg-cm,/oz-in), 6.0V: 10.2/141.6
Torque (kg-cm,/oz-in), 7.4V: 11.9/165.2
Dimensions (mm): 39.5×20.0x38.6
Weight (g): 61.6
Spline: 25

This product was added to our catalog on February 18, 2015
