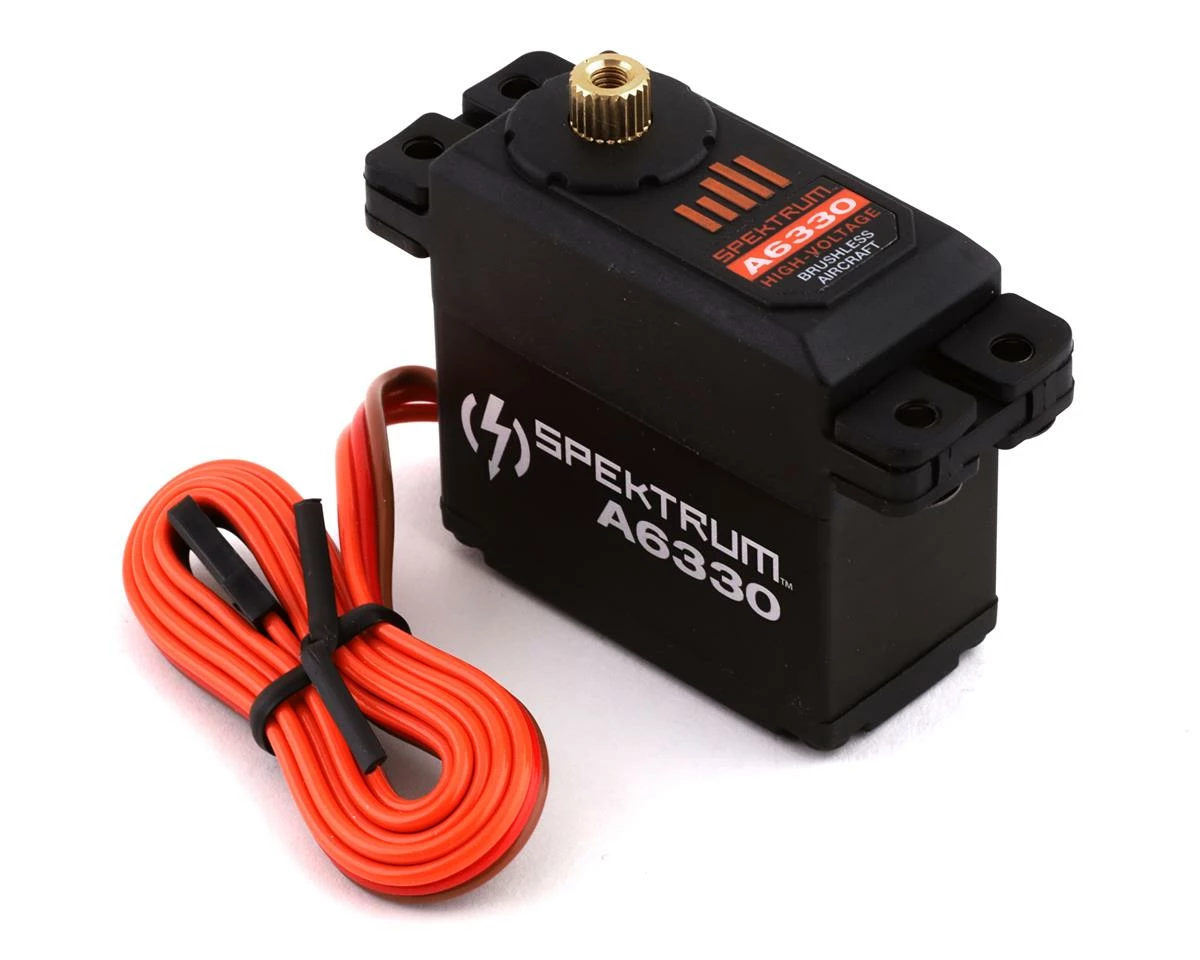

Spektrum RC A6330 Digital High Torque Metal Gear Aircraft Servo (High Voltage)

The Spektrum A6330 Digital High Torque Metal Gear High Voltage Aircraft Servo delivers amazing performance for a wide range of vehicles and aircraft. This servo delivers amazing performance for a wide range of vehicles and aircraft. High-Voltage (HV) capable, the A6330 can produce an impressive 248 oz-in of torque (17.8kg) and a remarkable 0.10 sec/60 degree transit speed with 8.4V input. The Low-wear, all metal gear drive train is powered by a long-lasting brushless motor and supported with dual ball bearings for smooth operation. A strong metal case adds durability and enhanced heat dissipation.

• Brushless motor provides long lasting durability and impressive power and speed
• High Voltage (HV) capable (6.0-8.4v input range)
• Outstanding torque and speed in a standard servo size (248 oz-in and .10 sec/60° @8.4v)
• Durable and long lasting brushless motor
• Low wear and tightly meshed all metal gear train
• Dual bearing supported drive train helps maximize smooth operation
• Aluminum center servo case helps keep operating temperatures low
• Soft start helps prevent component and airframe damage during un-intentional initializations
• Over Current and Temperature protection
• Helpful initialization start tone lets pilot know when the servo is ready
• Integrated servo failsafe holds last known position if signal is lost and power is maintained
• Frequency : 50-400hz

Bearing: Dual ball bearings

Torque: 126.6 oz-in (9.11 kg-cm) @ 6V, 178 oz-in (12.82 kg-cm) @ 7.4V, 248 oz-in (17.86 kg-cm) @ 8.4V

Product Height: 1.56″ (40 mm)

Servo Operating Voltage: 6.0 – 8.4V (HV)

Application: Airplane

Product Length: 1.58″ (40 mm)

Servo Type: Digital

Speed: 0.13 sec/60 deg @ 6V, 0.11 sec/60 deg @ 7.4V, 0.10 sec/60 deg @ 8.4V

Product Width: 0.79″ (20 mm)

Maximum Servo Speed: 0.100-0.149 sec

Rotation Range: 120 degree

Maximum Servo Torque: 200-349 oz-in

Motor Type: Brushless

Product Weight: 2.25oz (71g)

Spline Count: 23 – Tooth

Wire Gauge: 22 AWG

Input Voltage: 6 – 8.4V

Programmable: No

Servo Size Category: Standard

Gear Type: Metal
