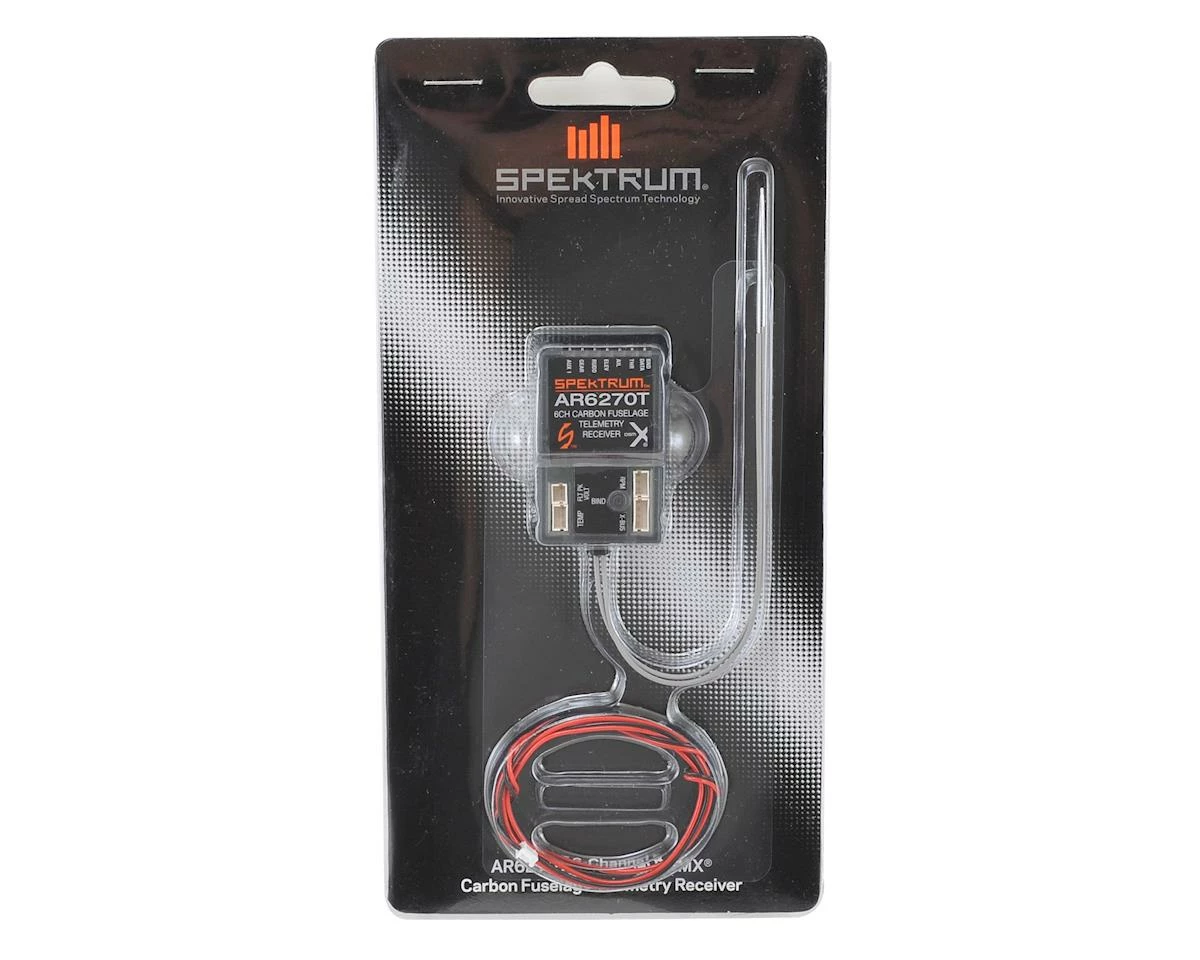

Spektrum RC AR6270T DSMX 6-Channel Carbon Fuse Telemetry Receiver

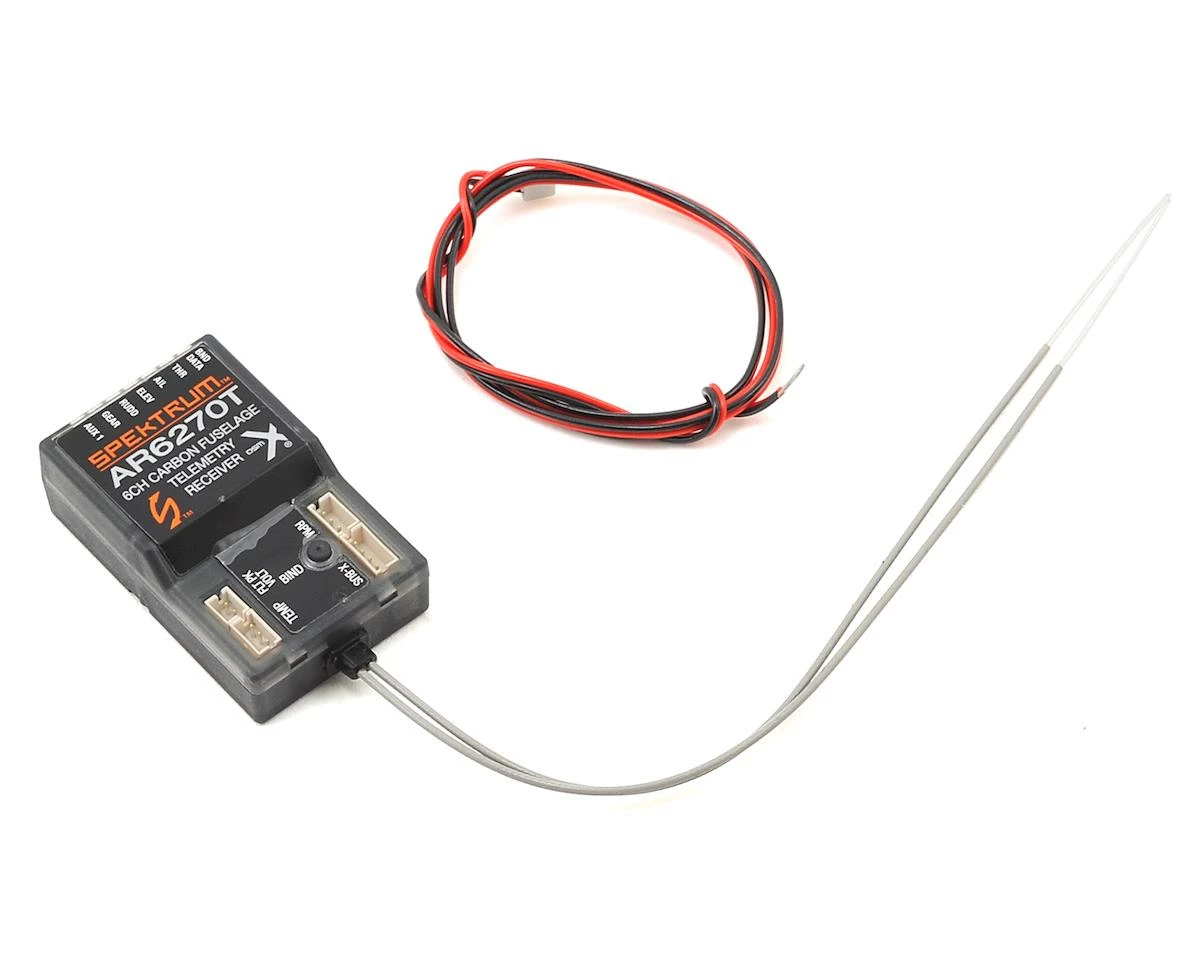

The AR6270T receiver is a feature-packed, 6-channel receiver with integrated full-range telemetry. It comes with built-in connection ports for RPM, Flight Pack Voltage and Temperature sensors as well as an X-Bus port for additional telemetry options. No sensor is required to receive Flight Log or receiver pack voltage telemetry. The AR6270T was designed specifically for carbon fuselage aircraft and includes a special antenna design that overcomes RF limitations by allowing you to route the antennas through the side of the fuselage to the outside of the aircraft.

Features:

• Compatible with all Spektrum DSMX transmitters
• Capable of 11ms frame rates
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
• Receiver pack voltage and flight log data available without the need for additional sensors
• Dual antenna’s for optimal RF performance
• Extended antenna’s designed for optimal performance with carbon fuselage aircraft

Specifications:
Type: AR6270T 6CH Carbon Fuse Telemetry Receiver
# of Channels: 6
Modulation: DSM2/DSMX
Band: 2.4GHz
Length: 1.738 in (44.18 mm)
Width: 1.099 in (27.91 mm)
Height: 0.584 in (14.84 mm)
Weight: 0.464 oz (13.148 g)
Voltage Range: 3.5-9V

This product was added to our catalog on October 12, 2016
