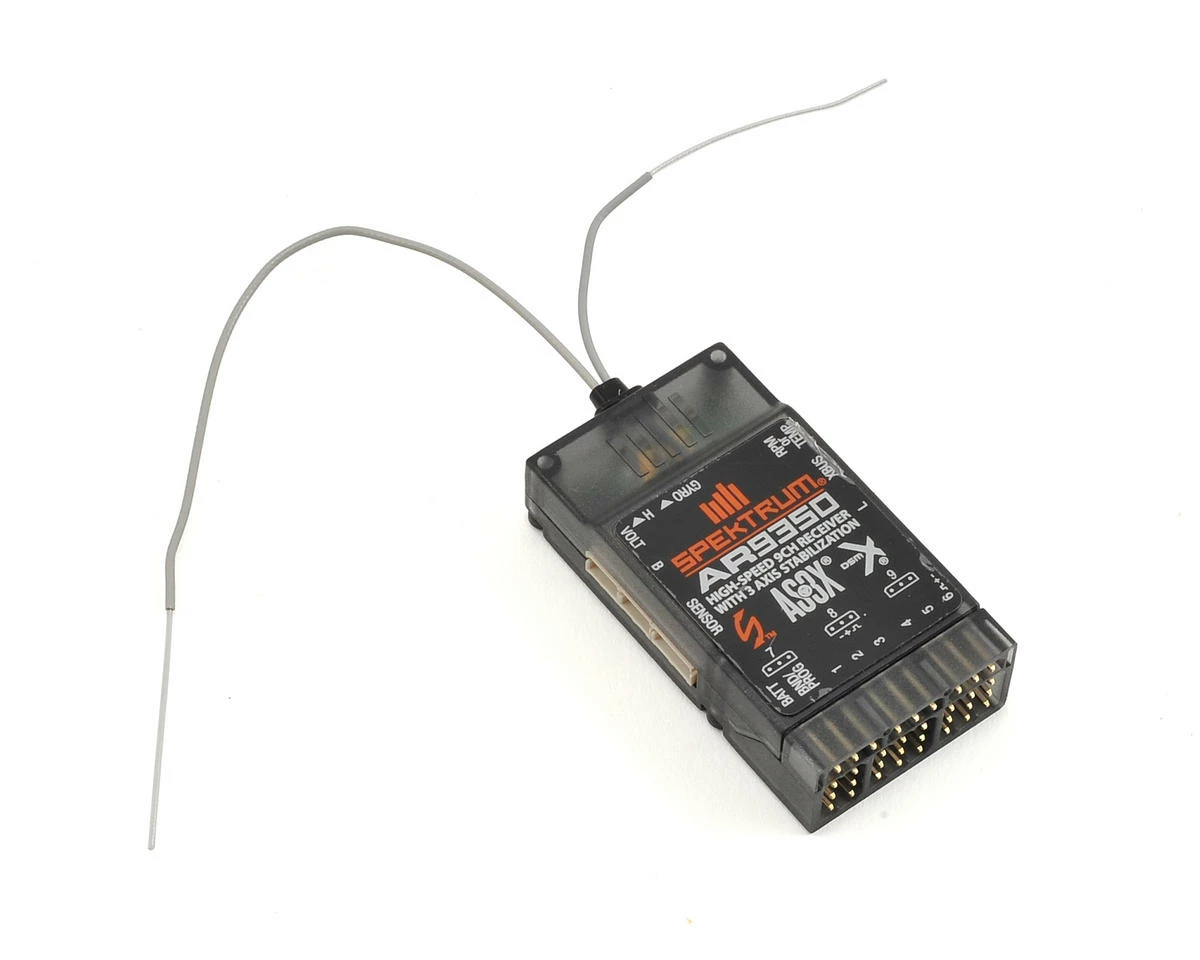

Spektrum RC AR9350 9-Channel AS3X Sport Receiver

Spektrum’s AR9350 9-Channel AS3X Sport Receiver is the next generation of AS3X (Artificial Stabilization – 3-aXis) receivers. The AR9350 makes it easier than ever for fixed wing pilots to transform their flying experience with this amazing technology. The AR9350 combines AS3X technology with a DSMX receiver in a single unit. What sets them apart is the programming software that makes setup and adjustment of their AS3X settings much easier.

The software’s easy-to-understand, graphical user interface will allow pilots to:

• Select which AS3X mode to fly with: Off, Conventional Rate and Heading Hold
• Activate flaperon/dual aileron, delta/elevon, V-tail or dual elevator mixing
• Take advantage of servo setup options like balancing, travel adjust, absolute limits, reversing and more
• Map output and gain settings for individual channels
• Programming made easy via PC or iOS/Android mobile devices
• Uses AS3X Programming Cable-SPMA3065 or Audio-Interface AS3X Receiver Programming Cable-SPMA3081 (sold separately) for programming

Features:

• AS3X® technology — 3 axis stabilization
• Perfect for larger aircraft requiring a 9-channel receiver such as many Hangar 9® models
• Includes (2) remote receivers
• Integrated telemetry provides real time telemetry data (with optional telemetry sensors)
• Programmable from mobile devices (iOS and Android) as well as PCs makes it easy to setup at home or at the field
• Lightweight, compact design
• Three gyro modes allow customization of the gyro performance and feel of the aircraft

Specifications:
Type: 9-channel AS3X receiver
# of Channels: 9
Modulation: DSM2/DSMX
Band: 2.4GHz
Length: 2.10 in (53.5mm)
Width: 1.15 in (29.2mm)
Height: 0.55 in (14.1mm)
Weight: 0.93 oz (26.5 g)
Voltage Range: 3.5-12V

This product was added to our catalog on November 11, 2015
